Briefly ...

​

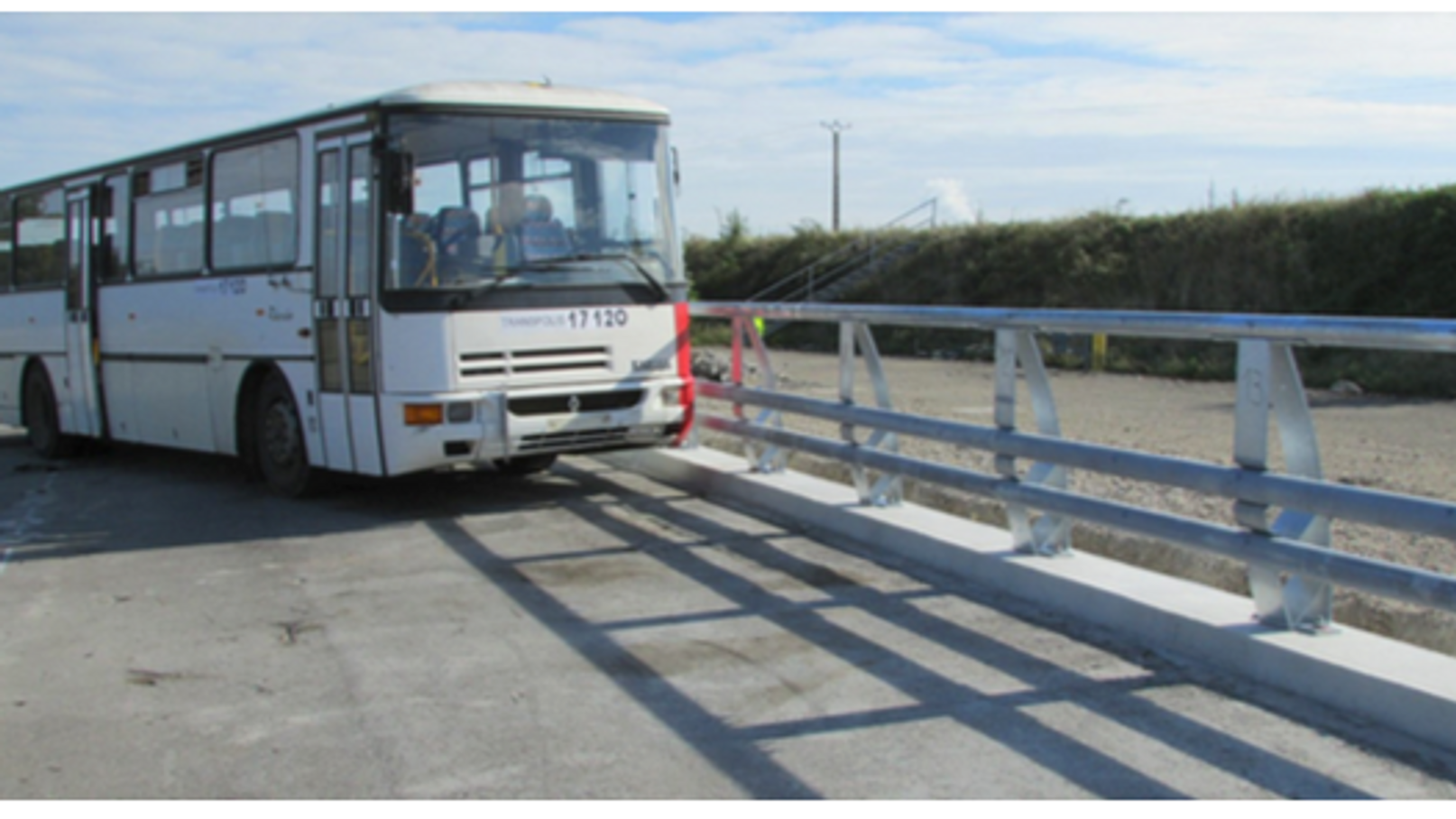

Steel restraint systems are linear elements designed to straighten the path of vehicles. They are made by assembling steel components.



In accordance with NBN EN 1317-1/2/5, the performance are:

​

• Minimum containment level: H2 (=TL4)

​

• Maximum working widthe : Wn 4

​

• Vehicle intrusion = VIn 3

​

• Acceleration Severity Index (ASI) =  ASI B

​

​

The additional features are:

​

• Minimum distance between posts = 2 m

• To ensure the guardrail function, the overall height in relation to the concrete support ≥ 1,20 m

• To limit the influence on the structure, the maximum space requirement between front and rear post face = 47 cm

• For aesthetic reasons, the longitudinal elements are tubes with a diameter of: 10 and 12 cm +/- 1 cm

• For aesthetic reasons, the connections between the longitudinal elements are not visible on the 180° front panel (the fixing points will only be located on the 180° rear panel)

• In order to limit the number of sealing holes, the average number of anchors per meter of device = 1 pieces/m

• To limit or even avoid reinforcements, the forces transmitted by post are M=14 kNm, V=43 kN

Guardrail fonction:

• Handrail height at 1.2m.

• Filling preventing the passage of a 15cm diameter cylinder.

• CE certification of the entire system (slide + filling).
